Product Details
＋

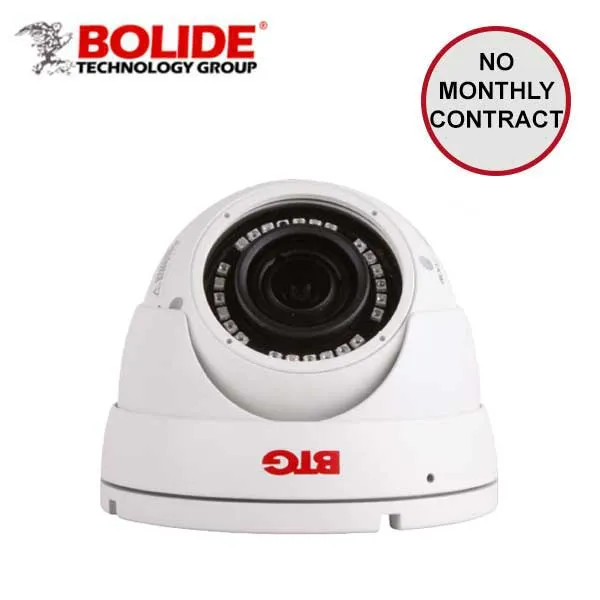

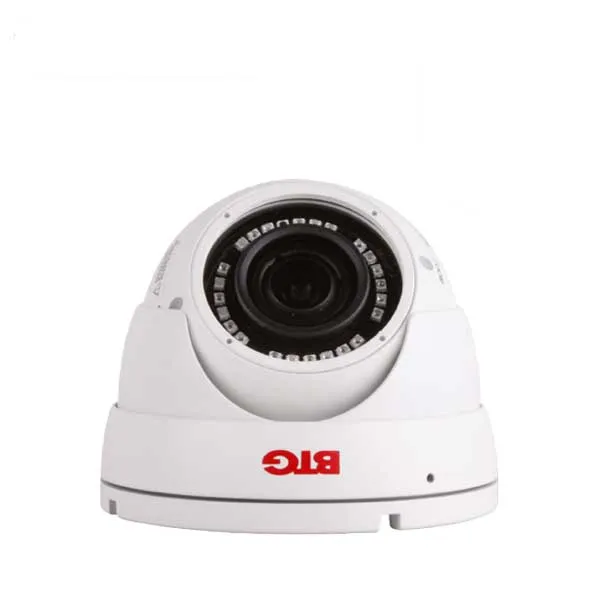

The new N1509 is a 5MP IR Eyeball network camera that has a fixed lens which allows it to take high quality footage up to 20m (65ft). Comes with high-performance processor 5.0 mega pixel CMOS imaging sensor, and is IP66 waterproof. Perfect for places with high activity, and Its super easy to install.
Features:
- Using high-performance processor 5.0 mega pixel CMOS imaging sensor
- Supports 5mp (2592*1944) 15fps monitoring
- Using linux embedded OS, low power consumption, steady and credible
- Using h.265 , h265 encoding, high compression ratio and lower stream
- Supports ICR automatic switchover, achieve round-the-clock monitoring
- Supports network interrupt, IP conflict, motion detection, video blind smart alarm
- Supports abnormal automatic recovery and network interrupt auto-reconnect functionality
- Supports watermark encryption, prevents data tampering
- Support DC12V/PoE, easy to install
- Supports IP66 waterproofing grade
- Supports anti-static and surge
- Supports ONVIF protocol access
- SDK development kit provided, allows access to other video management platforms
Specifications:
| Type | Fixed focal lens |
| Image Sensor | 1/2.7” 5MP Progressive Scan CMOS |
| Resolution | 2592 x 1944 |
| Electronic Shutter | Manual / automatic adjustment, 1/25 sec to 1/10000 sec |
| Min illumination | 0. [email protected](color mode); [email protected](black and white) |
| IR Distance | 20mm (65ft) |
| Focal Length | 2.8mm |
| Video Compression |
H.265 /H.265/H.264 |
| Video Bit Rate |
8kbps~32Mbps, Customizable |
| Video frame rate | Main Stream (2592*1944@15fps), secondary stream (D1@25fps) |
| Recording mode | Manual recording, time recording, recording descending order of priority: manual/timing |
| Network interface | 1 RJ45 10/100M Ethernet interface |
| Network protocol | Support TCP/IP/HTTP/RTSP/FTP/PPPOE/RTCP /SMTP/DHCP/DDNS/NTP/UPnP/SNMP |
| Access standard | ONVIF |
| Power Supply | DC12V/POE |
| Power consumption | 10W Max |
| Working Temp. | -20°C ~ 55°C |
| Working Humidity | ≤95% |
| Protection Class | IP66 |
| Material | Metal |
| Mounting | Wall Ceiling |
