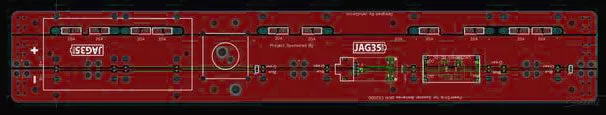

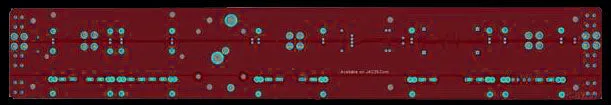

This listing is for the MegaloDONGLE Activator Powerstrip PCB Board that allows you to build your own DIY Megalodongle kit. See below for additional parts needed. Assembly and soldering required.

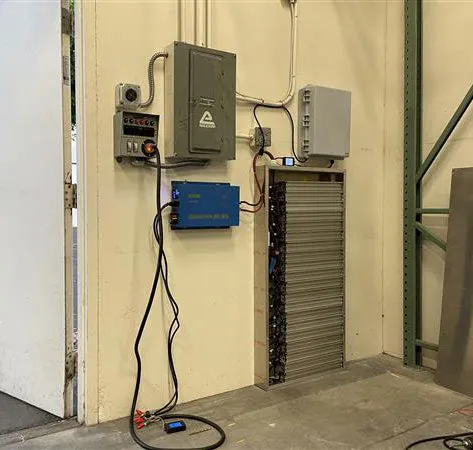

The MegaloDONGLE Activator Powerstrip is designed especially for your DIY Powerwall build using . Connect multiple MegaloDONGLE Activator Powerstrips together to build your powerwall to your custom specs. Each MegaloDONGLE Activator Powerstrip allows you to activate/wake . Discharge via an , charge via XT90.

DIGITAL UNLOCK SIGNAL
The MegaloDONGLE Activator Powerstrip sends the required Digital Unlock Signal each battery pack needs in order to remain ON while in use.

CHARGING DISCHARGING CABLES
Each MegaloDONGLE Activator Powerstrip needs 10x  and 10x  to take full advantage of the scooter pack's BMS safety features.

BUILT-IN METER w WIRELESS
The MegaloDONGLE Master supports a . It has 18 functions to help you conveniently and quickly access more accurate measurements. (Note: Slave MegaloDONGLE does not require a meter.)

Wireless transmission of data, to avoid the complex wiring between the display and detection modules that could cause interference.

Hall sensor is used to realize non-contact detection current without disconnecting wires, which is safe, reliable and convenient.

Voltage, current, power, temperature, capacity, percentage of remaining capacity, running time is displayed at the same time.

Double relay interface. Manage charge and discharge separately.

With charge over voltage, discharge under voltage, charge over-current, discharge over-current protection.

The memory function of the breakpoint, power-on and power-off, and the number of AH and WH before power-off can be memorized.

More meter specs & details

Parts you will need:

• 10x charging connectors -
• 10x Discharging Connectors. -
• 10x Fuse holders -
• 10x 20A fuses -
• 1x DC-DC module -
• 1x Arduino -
• 8x M4 nuts -
• 8x M4 nylon standoffs -
• 1x DC 500v Meter -
• 1x Xt90 Pigtail -
• 1x SB120 Connector -
• 1 meter of 6AWG cable -
• 6x M4 terminals -
• 10x Okai ES200 Scooter Batteries -
• Instructions on setting DC-DC Voltage and programing the Arduino -

See these instructional videos:

—-

These items are sold for DIY and Second Life purposes. Listings that are “untested” as sold as-is and cannot be returned, exchanged or refunded. Even when sold as “new”, “NOS”, or “like-new”, they may be in less than perfect condition.

If you buy a product from us and then realize you don't have, or don't want to acquire, the tool(s) or information needed to make our product(s) work for your specific build, this does not constitute valid grounds for replacements, exchanges or refunds. You are responsible for doing your due diligence before making any purchases.
