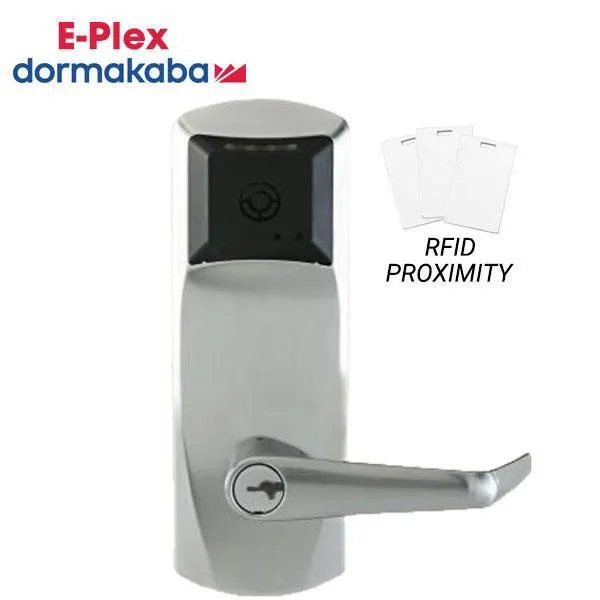

With a streamlined design, this cost-effective, heavy duty electronic lockset is built for performance. The most versatile E-Plex model to date, it functions in standalone or wireless modes for mortise, and exit trim applications. The E-Plex 7900 offers the same trusted function and reliability customers have come to love with other E-Plex offerings. E-Plex 7900 can be trusted in many access control environment. Cards not included
Features:
- Compatible with Proximity (125kHz)
- Integrated wireless access control
- Integrated RFID reader only lock - not push buttons
- Streamlined design
- More secure with door monitoring and sensing capabilities
- Batteries and wireless antenna on the secure side of the door.
- Offers door monitoring capabilities.
- Top mounted LED indicators.
Specifications:
Construction: |
Heavy duty electronic lockset with clutch mechanism and built-in contactless RFID reader |
Locking Device: |
1” Faceplate, Left hand, with Deadbolt |
Numeric Keypad: |
Vandal-resistant, solid metal pushbuttons |
Handing: |
Left factory handed mortise, field reversible handing |
Finish: |
Satin Chrome 26D (626) |
Key Override: |
KIL Key-in-Lever (Schlage C Keyway) Included |
| Backset: | 2 3/4” (70mm) Backset |
Bolt: |
½” Bolt |
Lever: |
Long Lever: ⅜” (9.5mm lever clearance) |
Door Thickness: |
From 1 ⅜” to 2 ½” (35mm to 66mm) |
Accessibility Standard: |
Americans with Disabilities Act (ADA) |
Certification: |
ANSI/BHMA Grade 1 Certified |
Fire Rating: |
3-hour UL/ULC fire rating for "A" label doors |
Warranty: |
3 years manufacturer warranty |
