Product Details
＋

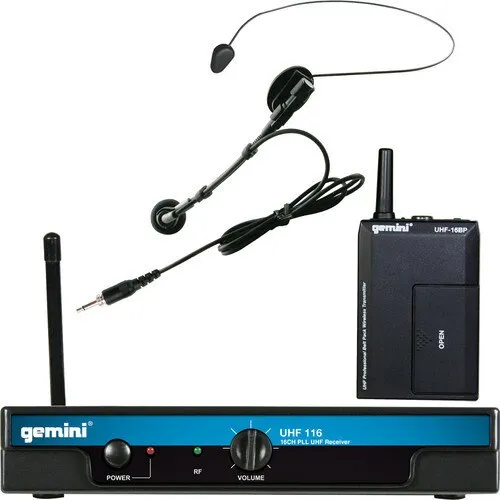

The UHF-116HL Wireless Head-worn & Lavalier System delivers stable wireless operation at an affordable price. The system features the UHF-116 receiver and HSL-08 headset/lavalier combo-microphone for hands-free speech while mounted to clothing, or worn around the ear. Easily choose between 16 UHF frequencies for stable operation. The UHF-116 receiver features a single antenna, unbalanced 1/4" phone output and level control dial on the front panel. The system is well suited for presentations, DJs, houses-of-worship, and general PA applications.
Features
- High quality (single channel) UHF receiver with 250' range
- US: 16 operating frequencies between 682MHz and 697MHz
- EUR: 16 operating frequencies between 854MHz and 864MHz
- Phase Locked Loop (PLL) circuitry for increased reception
- RF and AF LED indicators for monitoring incoming signal strength
- Auto mute with squelch control and built-in noise reduction
- Front panel output level control
- Standard (1/4" 6.3mm jack) output
- Combo headset/lavaliere (UHF-116HL)
- Low battery LED indicator
- Microphone On/Off switch
Specifications
System
- Type of System: UHF Frequency Agile
- RF Carrier Frequency Range: 682 - 698MHz
- Maximum Operating Distance: 250' (76.2m)
- Overall Frequency Response: 50Hz to 15kHz ( /- 3dB)
- # Of Channels: 16 Total
Receiver
- Type of Receiver: UHF-116
- Type of Outputs: 1/4" Phone
- Headphone Monitoring: No
- Power Requirements: 12-18VDC
- Battery Type/Approx. Life: AC Power Only
- Antenna Type
- BNC-type, 50 ohms
- Bias voltage: 12VDC, 60mA, each
- Dimensions (WxHxD): 6.69 x 1.18 x 4.05" (170 x 30 x 103mm)
Transmitter
- Type of Transmitter: Headset / Lavalier
- Type of Microphone
- Headset / Lavalier Combo
- Condenser
- Polar Pattern: Cardioid
- Interchangeable Mic Heads: No
- Battery Type/Approx. Life
- Two 1.5V AA alkaline
- 6 to 8 hours
- Mute Switch: Off/On Switch
- RF Power: 10mW (Max)
Dimensions: 2.59 x 3.81 x 0.98" (66 x 97 x 25mm)
