Product Details
＋

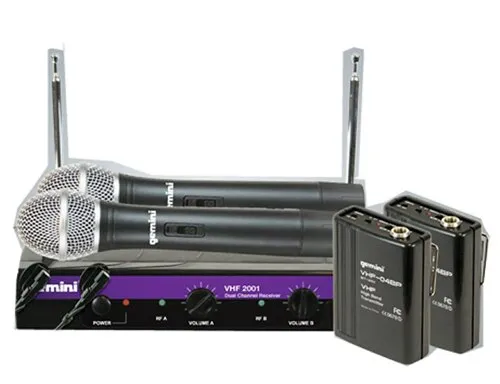

The VHF-2001M Dual VHF Wireless Handheld System delivers stable operation at an affordable price. The system consists of a dual channel wireless receiver and 2 cardioid handheld that may be used simultaneously for presentations, sermons, DJ sets and more. The system is easy to use, just connect the receiver to a preamplifier, power the transmitters and go. Its stable VHF operation will give you approximately 100' of operating range.
Features
- High quality single channel VHF receiver with 100' range
- 4 different channels that are matched to 4 different frequencies
- Power and Channel LED indicators
- Auto mute and built in noise reduction
- ON/OFF power switch
- Standard 1/4" (6.35mm Jack) output
- 2 Unidirectional, handheld dynamic microphone (VHF-1001M)
- Low battery LED indicator
Specifications
System
- Type of System: VHF Dual Channel
- RF Carrier Frequency Range: 10.7MHz
- Maximum Operating Distance: 100' (30.48m)
- Overall Frequency Response: 50Hz to 15kHz, 1kHz ( /- 3dB)
- # Of Channels: Single
Receiver

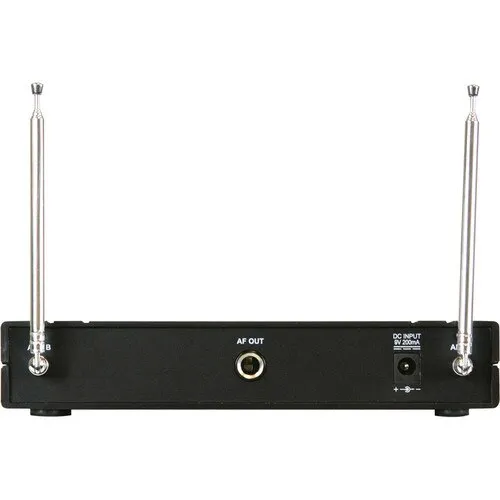

- Type of Receiver: VHF-2001 Receiver
- Type of Outputs: 1/4" Phone
- Headphone Monitoring: No
- Signal-to-Noise Ratio: Over 94dB at 15kHz deviation and 60dBuV input
- Modulation Mode: FM
- THD: Less than 1% (at 1kHz)
- Power Requirements: 9-12VDC
- Battery Type/Approx. Life: AC Power Only
- Dimensions: 83.82 x 434 x 264.16" (33 x 171 x 104mm)
Transmitter
- Type of Transmitter: Handheld
- Type of Microphone: Dynamic
- Polar Pattern: Unidirectional (Cardioid)
- Interchangeable Mic Heads: No
- Battery Type/Approx. Life
- 9 Volt Alkaline
- 6 - 8 Hours
- Mute Switch: Off/On Switch
- RF Power: 10mW (Max)
- Emission: More than 50dB below carrier frequency
- Frequency Stability: ±0.005% with Quartz Control
- Frequency Response: 50Hz to 20kHz, 1kHz (±3dB)
- Dimensions: 2.44 x 9.64" (62 x 245mm)
