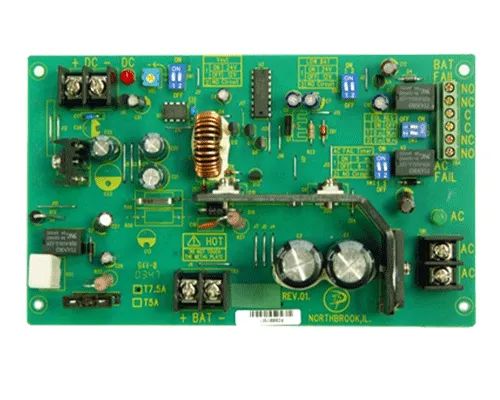

PREFERRED POWER PRODUCTS P3 P3PS-5-SU

The P3PS-5-SU is a supervised power supply and charger. It is engineered to convert low voltage AC input into 12VDC or 24VDC @ 5 AMPS of continuous supply current

The P3PS-5-SU has a number of applications for accessories requiring additional power.

Features

• Filtered and electronically regulated output.
• Built-in charger for sealed lead acid or gel type batteries.
• Automatic switch over to stand-by battery when AC fails.
• AC fail and low battery supervision (form "c" contacts)
• 100% full load burn-in tested.
• Circuit breaker batter protection
• AC input and DC output LED indicators.
• Trim pot adjustable voltage.
• Includes battery leads
• Short circuit and thermal overload protection
• Lifetime warranty.

Specifications

• Dip switch selectable 12VDC or 24VDC output.
• 5 AMPS continuous output current at 12VDC or 24VDC.
• Maximum charge current .5 amps.
• Board dimensions: 5.25” (L) x 3.25” (W) x 1.6” (H).
